1064nm 200mW DFB пеперуда лазерен диод

Table of Contents

1 Introduction of the 1064nm 200mW DFB Butterfly Laser Diode

2 Technical Specifications

3 Product Features

4 Typical Applications

5 Product details

6 Ordering Information

7 Datasheet and testsheet

8 Terms of quote and payment

9 Lead time

10 Operation Notes

11 Quality Assurance and After-Sales Service

Product Introduction

1064nm 200mW DFB Butterfly Laser Diode with a multi-quantum well DFB structure and 14-pin butterfly package. +/-2nm wavelength tolerance. It integrates TEC, a monitor photodiode, and a thermistor, supports SM Hi1060 or PM980 fiber, with a typical 200mW output power. Ideal for seed source, spectroscopy, and optical sensing. Note ESD protection, and do not exceed absolute maximum ratings.

Product Specifications

Product Features

● SM fiber or PM fiber pigtail;

● 200mW high output power;

● High reliability;

● 14-pin BTF package with thermoelectric cooler and monitor photodiode.

Product Applications

● Seed source for lasers;

● Spectroscopy;

● Optical sensing.

Product Details

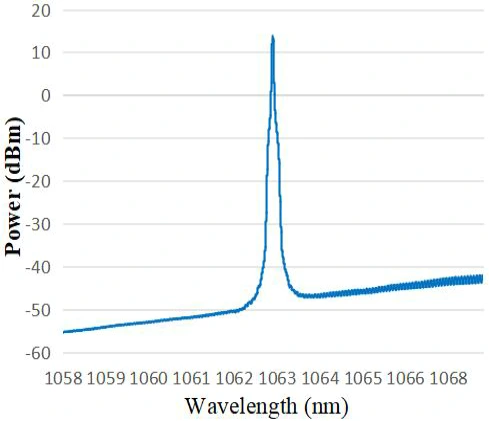

● Typical spectrum: 1064nm, +/-2nm WL tolerance.

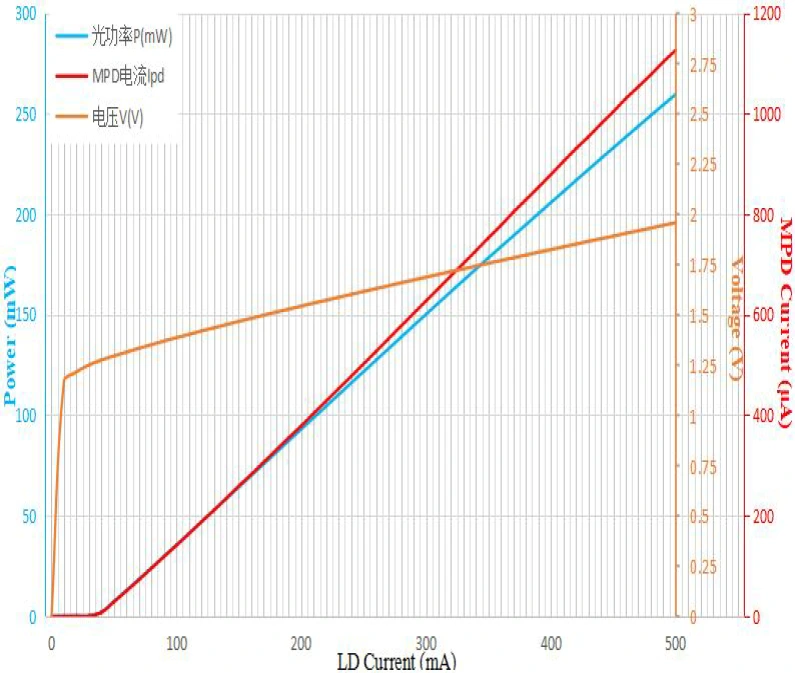

● PIV

● Standard accessories

*Standalone device; no built-in driver (external driver optional).

Ordering information

eg: BFLD-1064-2HPM-FA

(Order information: 1064nm 200mW DFB Butterfly Laser Diode, with PM fiber, FC/APC connector, pump pin).

For other customized requirements, please contact: sales06@boxoptronics.com

Datasheet and Testsheet

Datasheet

Testsheet

Terms of quote and payment

● Terms of quote

(1) EXW:

If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.

(2) DAP:

If you don't have an account, please prepay the shipping cost for the products.

(3)Other

● Terms of payment

PayPal and T/T are available.

Lead time

It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)

The international logistics might take 3-5 working days.

Operation Notes

● This device is electrostatic-sensitive; therefore, strict adherence to anti-static protection measures is required during packaging, transportation, and usage. Additionally, precautions must be taken to prevent power supply surges, as failure to do so may result in permanent damage to the device (e.g., ensuring proper equipment grounding and wearing an anti-static wrist strap).

● Optical fibers are fragile; do not use the fiber to pull the device. When inserting or removing a device from its socket, do not apply pressure to or pull on the sleeve located at the rear of the device housing. For devices equipped with connectors, ensure that both the device and the fiber connector are lifted simultaneously during installation or removal.

● If the pins require soldering, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds. Particular attention must be paid to the following: during the soldering process, the device must be in an unpowered state, and the soldering iron must be properly grounded.

Quality Assurance and After-Sales Service

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.

(2) Malfunctions due to improper operation by the user.

(3) Obvious physical damage caused by human error.

(4) Unauthorized disassembly, modification, or repair.

(5) Altered or incomplete warranty labels on the housing.

(6) Damage or loss during transportation.
